High Precision Shutter Door Roll Forming Machine With PLC System for Aluminum Steel Sheet

Hangzhou bluesteel machine co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

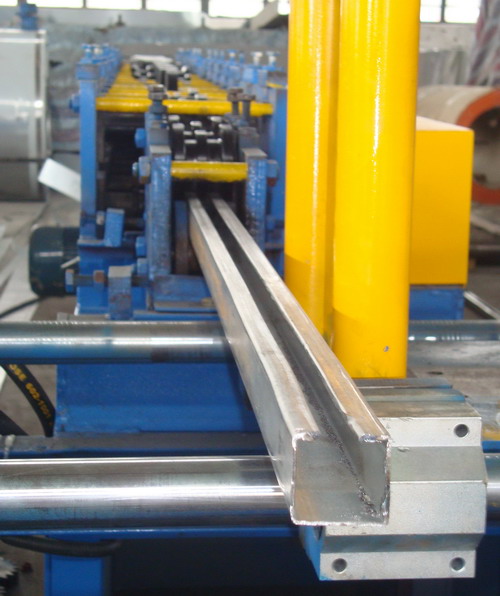

High Precision Shutter Door Roll Forming Machine With PLC System for Aluminum Steel Sheet

  • 1
  • 2

Brand Name : bluesteel

Model Number : bl

Certification : ce

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T or L/C

Supply Ability : 50sets /month

Delivery Time : 45days

Packaging Details : spare parts in wooden box,other plastic film cover

thickness range : 0.3-0.7mm

material stress : 235MPa 345MPa and 550MPa.

roller material : No.45steel

system : PLC control automatic system

Contact Now

High Precision Shutter Door Roll Forming Machine With PLC System for Aluminum Steel Sheet

Technical data of roller shutter door roll forming machine

Suitable material

color steel sheet;0.7-1.0mm,1.5mm, 2mm

Working speed

about8-25m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 12 Kw(Depend on final design)

Hydraulic station power: 3Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)

Layout drawing of machine

High Precision Shutter Door Roll Forming Machine With PLC System for Aluminum Steel Sheet

Usage Of Roof Panel :

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.

producing process:

High Precision Shutter Door Roll Forming Machine With PLC System for Aluminum Steel Sheet

Product:

We can also customize the products according to customer ' s requirements

High Precision Shutter Door Roll Forming Machine With PLC System for Aluminum Steel Sheet

High Precision Shutter Door Roll Forming Machine With PLC System for Aluminum Steel Sheet

After-Sale Service

Professional Engineers are available to be sent to the customer’s factory to install and debug the machines and teach the staff how to operate the machines.
