Product Description:

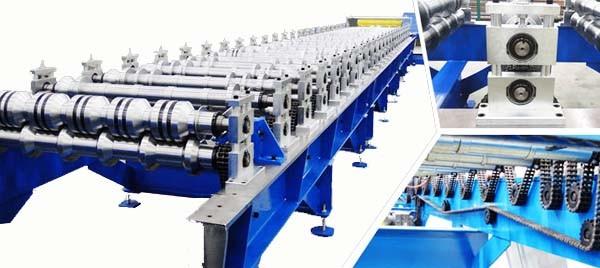

The Roof Panel Roll Forming Machine is a highly efficient and reliable wave sheet forming machine used for roof sheet forming. It is made with superior quality materials that are durable and can withstand the test of time. The forming thickness of the roof panel roll forming machine ranges from 0.3mm to 0.8mm and it is equipped with 17-20 stations of rollers. It is also equipped with Omron encoder for accurate forming and voltage is 380V/50Hz/3Phase. It is capable of forming different shapes and sizes of wave sheets for roof sheet panel forming. This Roof Panel Roll Forming Machine is ideal for producing high quality and cost efficient roof sheets that are perfect for any kind of building or construction.
Features:
- Product Name: Roof Panel Roll Forming Machine
- Forming Thickness: 0.3-0.8mm
- Encoder: Omron
- Voltage: 380V/50HZ/3Phase
- Forming Speed: 20-25m/min
- Material of Cutter: Cr12Mov
- Suitable for roof sheet forming machine, IBR sheet forming machine, corrugated sheet forming machine
Technical Parameters:
| Parameter |
Description |
| Product Name |
Roof Panel Roll Forming Machine |
| Material of Cutter |
Cr12Mov |
| Voltage |
380V/50HZ/3Phase |
| Roller Stations |
17-20 Stations |
| Forming Thickness |
0.3-0.8mm |
| Control System |
PLC |
| Material of Frame |
H Beam |
| Machine Size |
7000*1500*1400mm |
| Machine Weight |
About 5T |
| Forming Speed |
20-25m/min |
Applications:
Banlu Roof Panel Roll Forming Machine (Model No.: BL-2) is designed for forming roof sheets with high speed and accuracy. It is made of premium 45# steel and equipped with Omron encoder. This machine is capable of forming wave sheets and IBR sheets with forming speed up to 20-25m/min and forming width of 1000mm. It is reliable, durable and easy to operate. With its high accuracy and quality, Banlu Roof Panel Roll Forming Machine is perfect for industrial and commercial applications.
Customization:
Our Roof Panel Roll Forming Machine is custom-made to order. The brand name is Banlu, and the model number is BL-2. It is manufactured in CHINA, with the frame material being H Beam and the shaft material being 45# Steel. The machine size is 7000*1500*1400mm, and the forming width is 1000mm, with the power being 7.5KW. This corrugated sheet forming machine, IBR sheet forming machine, and corrugated sheet forming machine is perfect for your needs.
Packing and Shipping:
Packaging and Shipping for Roof Panel Roll Forming Machine:
The Roof Panel Roll Forming Machine is carefully packaged and wrapped in plastic for protection against dust and humidity. It is then placed in a wooden crate for extra protection during transportation. The crate is labeled and stamped for easy identification and tracking. Each shipment is tracked from the time of dispatch until it reaches its destination.
